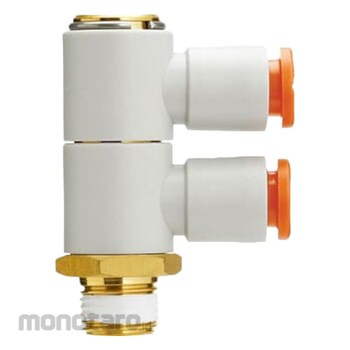

SMC Double Universal Elbow KQ2VD without Sealant Inch Size
#Grup produk P108891432
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass + electroless nickel plating |
| Connector Thread | NPT3/8 |
| Dimension A (mm) | 52 |
| Dimension d1 (Φmm) | 15.4 |
| Dimension L1 (mm) | 25.3 |
| Dimension L2 (mm) | 24.8 |
| Dimension L3 (mm) | 56.7 |
| Dimension P (mm) | 19.2 |
| Dimensions d2 (mm) | 20.6 phi |
| Dimensions m (mm) | 15.6 |
| Effective Section Area (mm²) | (Nylon) 23.4 (Urethane) 19.3 |
| Pipe Connection Diameter | 3/8 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Double universal elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | NPT |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Dimension A is the reference dimension after screwing in the NPT screw- Dimension φD1 means the maximum diameter.
Use
Used for branch piping in a right angle direction from the screw. The tube mounting direction is free and two independent.Dokumentasi Produk
