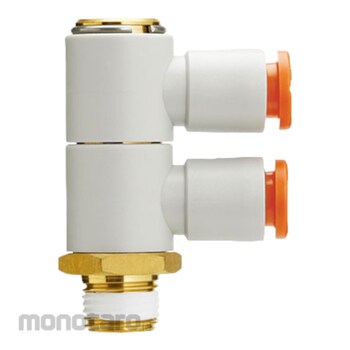

SMC Double Universal Elbow KQ2VD Gasket Seal Inch Size
#Grup produk P108891399
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | 10-32UNF |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 2.5 (Urethane) 2.5 |
| Pipe Connection Diameter | No.10-32 |
| Shape | Double universal elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | UNF |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD1 means the maximum diameter.
Use
Used for branch piping in a right angle direction from the screw. The tube mounting direction is free and two independent.Ulasan Produk
