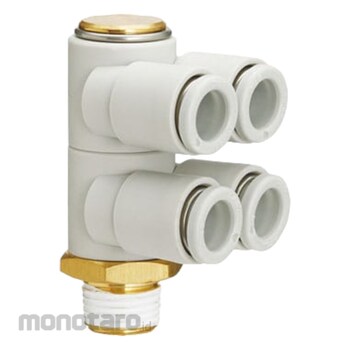

SMC Double Branch Universal Elbow KQ2ZD without Sealant Metric Size
#Grup produk P108891371
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Material (screw) | Brass + electroless nickel plating |
| Connector Thread | R3/8 |
| Dimension A (mm) | 39.7 |
| Dimension d1 (Φmm) | 8.2 |
| Dimension L1 (mm) | 18.5 |
| Dimension L2 (mm) | 22.1 |
| Dimension L3 (mm) | 44.8 |
| Dimensions d2 (mm) | 13.4 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 4.7 (Urethane) 4.7 |
| Pipe Connection Diameter | 3/8 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Double Branch universal elbow |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | RRc |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Dimension φD1 means the maximum diameter. - Dimension A is the reference dimension after screwing R screw
Use
Used for 4 -branch piping in the right angle direction from the screw. The tube mounting direction is free and two independent.Ulasan Produk
