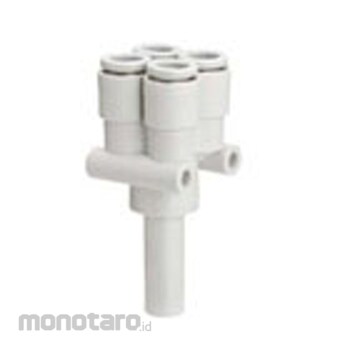

SMC Double Branch Union Y KQ2XD Metric Size
#Grup produk P108891317
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension A (mm) | 32.1 |
| Dimension d1 (Φmm) | 8.2 |
| Dimension I (mm) | 16.6 |
| Dimension L1 (mm) | 45.4 |
| Dimension L2 (mm) | 18.2 |
| Dimension N (mm) | phi 3.2 |
| Dimension P (mm) | 8.2 |
| Dimension Q (mm) | 6.8 |
| Dimensions d2 (mm) | 10.4 phi |
| Dimensions m (mm) | 13.3 |
| Dimensions o (mm) | phi 6 |
| Effective Section Area (mm²) | (Nylon) 4.2 (Urethane) 4.2 |
| Shape | Double Branch union wai |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Suitable fluid | Air, water |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD means the maximum diameter.Use
Used for the same direction of 4 -branch pipes from one-touch tube.Dokumentasi Produk
