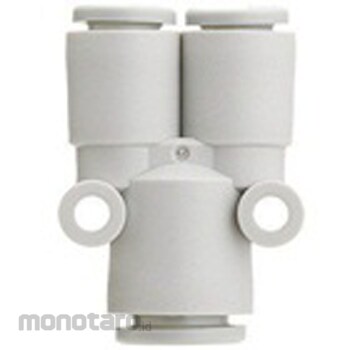

SMC Different Diameter Union Y KQ2U Metric Size
#Grup produk P108884858
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension d1 (Φmm) | 7.1 |
| Dimension L1 (mm) | 28.9 |
| Dimension L2 (mm) | 18 |
| Dimension N (mm) | phi 3.2 |
| Dimension P (mm) | 7.1 |
| Dimension Q (mm) | 5.7 |
| Dimensions d2 (mm) | 8.2 phi |
| Dimensions m1 (mm) | 13.3 |
| Dimensions m2 (mm) | 13.3 |
| Dimensions o (mm) | phi 6 |
| Effective Section Area (mm²) | (Nylon) 3.2 (Urethane) 2.7 |
| Minimum Hole Diameter (mm) | 2.5 |
| Shape | Different diameter Union Y |
| Suitable fluid | Air, water |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimensions φD1 and φD2 mean the maximum diameter.Use
Used to connect the tubes that branch down in the same direction and branch.Dokumentasi Produk
