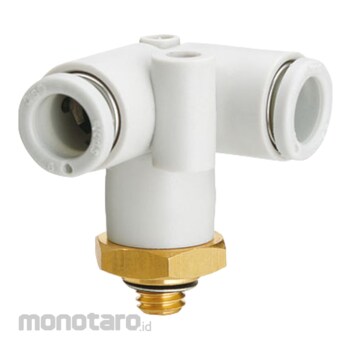

SMC Delta Union KQ2D Gasket Seal Metric Size
#Grup produk P108884575
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | M5×0.8 |
| Dimensions m (mm) | 13.3 |
| Dimensions o (mm) | phi 6 |
| Pipe Connection Diameter | M5×0.8 |
| Shape | Delta union |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | M |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD means the maximum diameter.
Use
Used for branch piping in two directions in right angle from the screw.Dokumentasi Produk
