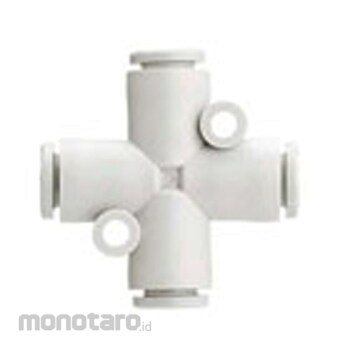

SMC Cross KQ2TW Metric size
#Grup produk P108883992
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension d1 (Φmm) | 18.5 |
| Dimension L (mm) | 23 |
| Dimension N (mm) | phi 4.2 |
| Dimension Q (mm) | 10 |
| Dimensions m (mm) | 17 |
| Dimensions o (mm) | phi 8 |
| Effective Section Area (mm²) | (Nylon) 57.4 (Urethane) 45.4 |
| Minimum Hole Diameter (mm) | 9 |
| Shape | Cross |
| Suitable Tube Outer Diameter (Φmm) | 12 |
| Suitable fluid | Air, water |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD means the maximum diameter.Use
Used for branch connection between tubes in four directions.Ulasan Produk
