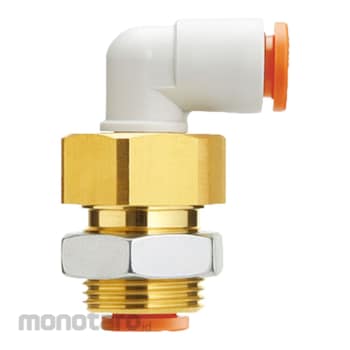

SMC Bulkhead Elbow KQ2LE Inch Size
#Grup produk P108879397
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Pipe Connection Diameter | Same diameter tube |
| Shape | Bulkhead elbow |
| Suitable fluid | Air, water |
| Type Of Thread | NPT |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD means the maximum diameter.
Use
Used for 90 degrees in the direction of tube removal direction along with relay connection between tubes such as panel mounting.Dokumentasi Produk
