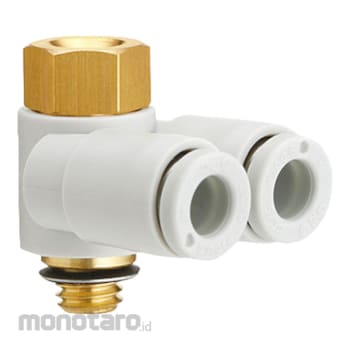

SMC Branch Universal Female Elbow KQ2ZF Gasket Seal Metric Size
#Grup produk P108879333
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Material (screw) | Brass |
| Connector Thread | M5×0.8 |
| Dimension A (mm) | 16.2 |
| Dimension d1 (Φmm) | 8.2 |
| Dimension L1 (mm) | 16.5 |
| Dimension L2 (mm) | 10.2 |
| Dimension L3 (mm) | 19.2 |
| Dimension P (mm) | 8.2 |
| Dimensions d2 (mm) | 9.8 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 3.4 (Urethane) 3.4 |
| Pipe Connection Diameter | M5×0.8 |
| Sealing Type | (Male screw) No sealant |
| Shape | Branch universal elbow |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | M |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD1 means the maximum diameter.Use
The screw and the twist are used for two -branch piping in the same direction and 90 degrees from both, and can be connected multiplely.Ulasan Produk
