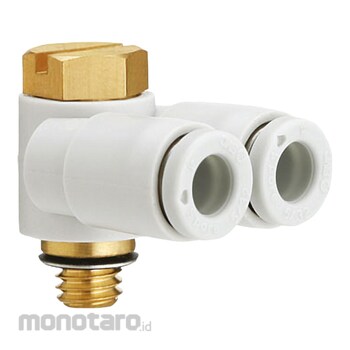

SMC Branch Universal Elbow KQ2Z Gasket Seal Metric Size
#Grup produk P108879254
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Connector Thread | M5×0.8 |
| Dimension A (mm) | 15.4 |
| Dimension d1 (Φmm) | 8.2 |
| Dimension L1 (mm) | 16.5 |
| Dimension L2 (mm) | 10.9 |
| Dimension L3 (mm) | 18.4 |
| Dimension P (mm) | 8.2 |
| Dimensions d2 (mm) | 9.8 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 3.4 (Urethane) 3.4 |
| Pipe Connection Diameter | M5×0.8 |
| Shape | Branch universal elbow |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | M |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD1 means the maximum diameter.
Use
Tighten the hexagonal head of the body with a box wrench and use an elbow union for branch piping.Dokumentasi Produk
