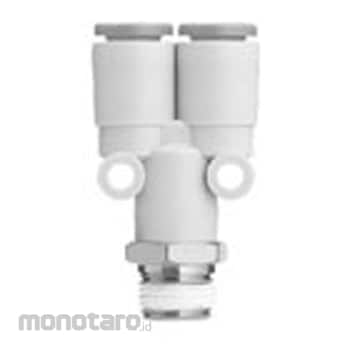

SMC Branch KQ2U with Sealant Inch Size
#Grup produk P108879139
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | NPT1/4 |
| Dimension A (mm) | 37.8 |
| Dimension L (mm) | 42.2 |
| Dimension P (mm) | 11.1 |
| Dimension Q (mm) | 7.6 |
| Dimensions d (mm) | Φ11.1 |
| Dimensions m (mm) | 13.3 |
| Dimensions o (mm) | phi 8 |
| Effective Section Area (mm²) | (Nylon) 14.4 (Urethane) 12.4 |
| Pipe Connection Diameter | 1/4 |
| Seal | (Screw part) With sealant |
| Shape | Branch |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | NPT |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Dimension A is the reference dimension after screwing in NPT screws, screws in R screws- Dimension φD means the maximum diameter.
Use
Used for branch piping in the same direction from the screw part.Dokumentasi Produk
