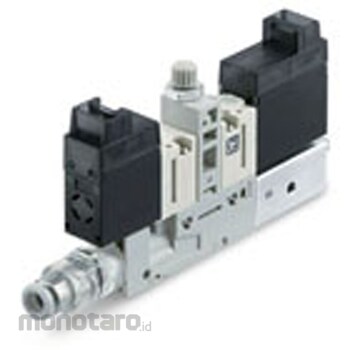

SMC ZB - Small Vacuum Unit/Single Unit ZB0621
#Grup produk P108876336
Kondisi Barang:
Authorized Partner
Spesifikasi
| Rated Voltage (V) | (5) DC24 |
|---|---|
| Body Type | (2) Single unit (PV, PD individual port) |
| Exhaust Type | (1) Silencer exhaust (individual exhaust) |
| Manual Operation Type | (-) Non-lock push type |
| Nozzle diameter (mm) | (06) 0.6 |
| Pressure Sensor | (EA) Vacuum pressure switch [0 to -101, NPN2 output (with unit switching function)], (G) Lead wire with connector With connector cover (lead wire length 2 m) |
| Option | With a single bracket (bundled dispatched items, not assembled) |
| Pressure Sensor/Vacuum Pressure Switch Specification | Vacuum pressure switch; pressure range: 0 to -101 kPa; with NPN2 output unit switching function |
| Supply Valve/Release Valve Combination | (K1) Supply valve (normally closed) - Destruction valve (normal rose) |
| Switch | (EA) Vacuum pressure switch [0 to -101, NPN2 output (with unit switching function)] |
| Type of Lead Wire Extraction | Supply valve / break valve: (L) L-shaped plug connector / with lead wire, for vacuum pressure switch: (G) with connector With lead wire connector cover (lead wire length 2 m) |
| Vacuum (V) Port | (L4) Elbow Φ4mm one-touch fitting |
| Vacuum Pressure Switch | Lead wire with connector Lead wire length with connector cover 2m |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Compatible with ejector system/vacuum pump systemHigh -speed response: A response 5ms, a true vacant response time 28ms
Energy saving: air consumption reduced by 17%and empty pressure was improved 21%
Small / lightweight: 46g
With a vacuum pressure switch, can be copied up to 10 units at the same time
