SMC ZA - Small Vacuum Unit/Single Unit ZA1071
#Grup produk P108876150
Kondisi Barang:
Authorized Partner
Spesifikasi
| Type | Non-locking push type (tool required) / Latching type: Push-lock type (tool required) |
|---|---|
| Voltage (V) | (5) DC24 |
| Function | (-) Standard type (DC is 1W) |
| Lead Wire (m) | 0.3 |
| Manual | (-) Non-lock push type |
| Manual Operation Type | (-) Non-lock push type |
| Nozzle diameter (mm) | (07) Φ0.7 |
| Pneumatic Supply (P) Port | (0) No fitting (M5 x 0.5) |
| Power Supply Voltage (V) | DC24 |
| Pressure Sensor | (P1) With pressure sensor (0 to -101 kPa accuracy +/- 2% FS) |
| Solenoid Valve Combination | (K1) For supply: Normal close For destruction: Normal close |
| Suction Filter | (F) With suction filter |
| Type of Lead Wire Extraction | (L) L-shaped plug connector / lamp with surge voltage protection circuit |
| Vacuum (V) Port | (4) Φ3.2 (elbow) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

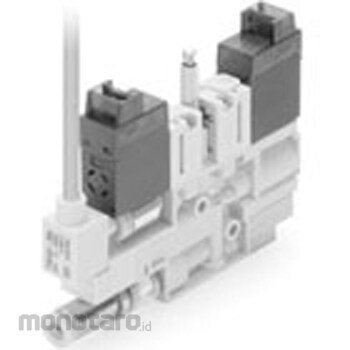

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Overall width: 9.9mm, total length: 72.9mm, total height: 52.5mm, mass: 50gCan be installed
Improvement of responsibilities by shortening the length of tube to the pad
Manicized can be converted
