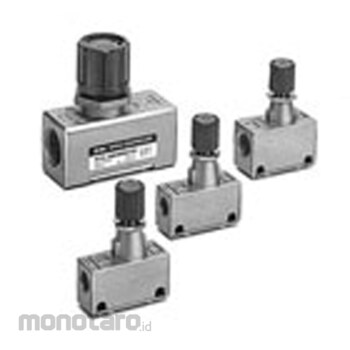

SMC With Speed Controller Residual Pressure Release Valve
#Grup produk P108875911
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60 (no freezing) |
|---|---|
| Body Size | 1/2 standard |
| Control Flow Effective Sectional Area (mm²) | 25.5 |
| Control Flow Rate ANR (L/minute) | 1670 |
| Effective Section Area (mm²) | Residual pressure waste valve: 0.8 |
| Fluid | Air |
| Free Flow Effective Section Area (mm²) | 25.5 |
| Free Flow Rate ANR (L/minute) | 1670 |
| Guaranteed Withstand Pressure (MPa) | 1.5 |
| Maximum Operating Pressure (MPa) | 1 |
| Minimum Working Pressure (MPa) | 0.05 |
| Needle Rotation Speed | 8 |
| Pipe Connection Diameter | 3/8 |
| Suitable For | Cylinder tube: inner diameter 40, 50, 63, 80, 100 mm |
| Type Of Thread | Rc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsDokumentasi Produk
