SMC Vacuum Pad ZPT25D
#Grup produk P108871678
Kondisi Barang:
Authorized Partner
Spesifikasi
| Material | Silicone rubber |
|---|---|
| Material (adapter) | (lock ring): brass |
| Pad Material | Silicon rubber |
| Connector Thread | Without screw |
| Extraction Direction | Longitudinal direction |
| Pad Diameter (Φmm) | 25 |
| Pad Shape | Deep type |
| Thread Size | Vacuum outlet / Rc1/8 (also used for mounting connection) |
| Type of Connection | Vacuum outlet / female screw (also used for mounting connection) |
| Vacuum Outlet | Rc1/8 female thread |
| Vacuum Take-out Direction | Vertical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

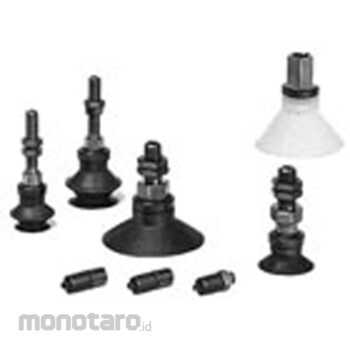

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
12 sizes, 6 types of pad shape, can be selected for mounting bracketsPad -shaped: Flat shape, flat -shaped ribs, velow shape, thin, thin ribs, deep shape
Installation connection: Music, Sister
Vacuum removal direction: vertical, horizontal
Vacuum mounting outlet: Music, screw, one -touch tube, barb fitting
Buffer: None, Yes [Buffast Lok (mm): 6, 10, 15, 20, 25, 30, 40, 50]
