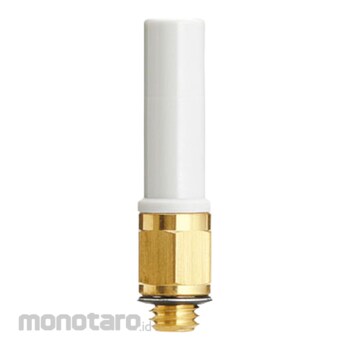

SMC Adapter KQ2N Gasket Seal Metric Size
#Grup produk P108859135
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | M5×0.8 |
| Dimension A (mm) | 26.7 |
| Dimension L (mm) | 29.7 |
| Dimensions m (mm) | 13.4 |
| Minimum Hole Diameter (mm) | 2.5 |
| Pipe Connection Diameter | M5×0.8 |
| Shape | Adapter |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | M |
| Width Across Flats H (mm) | 7 |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUse
Used to connect one -touch tube and R mission.Dokumentasi Produk
