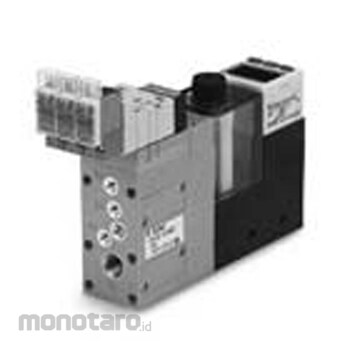

SMC Large Vacuum Unit ZR120L
#Grup produk P108758988
Kondisi Barang:
Authorized Partner
Spesifikasi
| Combination of Switch/Filter/Output Specification | Vacuum pressure switch (ZSE2) + filter + NPN open collector 1 output |
|---|---|
| Ejector Exhaust Type | (1) Built-in silencer |
| Ejector Unit Nozzle Diameter (Φmm) | (20) 2.0 |
| Fracture Flow Adjustment Needle/Bracket | (-) Without locknut / with bracket A or B |
| Lamp/Surge Voltage Protection Circuit | (Z) With lamp / surge voltage protection circuit |
| Lead Wire | (L) Grommet / lead wire (length 3m) |
| Lead Wire (m) | 0.3 |
| Manual Operation Type | (-) Non-lock push type |
| Output specifications | (-) NPN open collector 1 output |
| Pressure Switch/Filter Combination | (E) Vacuum pressure switch (ZSE2) + filter |
| Solenoid Valve Rated Voltage (V) | DC24 |
| Supply Valve/Release Valve Combination | (K2) Supply valve: NC (SYJ3133); Destruction valve: NC (SYJ3133) |
| Type of Lead Wire Extraction | (L) L-type plug connector type |
| Unit | With or without unit switching function |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Compatible with ejector system/vacuum pump systemRequired functions and combinations by module design are possible
Self -holding function by double solenoid
Manicized can be converted
You can select functions such as digital vacuum switches, electromagnetic valves, etc.
