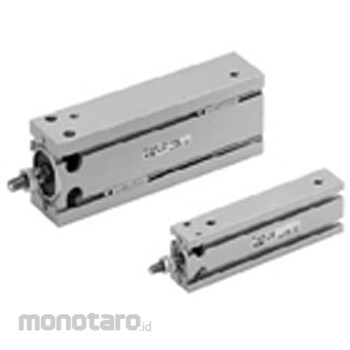

SMC Free Mount Cylinder CU Series CDU25-60
#Grup produk P108742428
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -10 to 70 (but no condensation) |
|---|---|
| Assured Pressure Resistance (MPa) | 1.05 |
| Auto Switch Type | None |
| Built-in Magnet Availability | Included |
| Cushioning | Rubber cushion |
| Lubrication | No lubrication |
| Maximum Operating Pressure (MPa) | 0.7 |
| Minimum Working Pressure (MPa) | 0.05 |
| Operating Piston Speed (mm/s) | 50 - 500 |
| Rod end Screw | Male screw |
| Stroke (mm) | 60 |
| Suitable fluid | Air |
| Tube Inner Diameter (Φmm) | 25 |
| Type Of Thread | M5×0.8 |
| Type of Acting | Double acting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
An air cylinder with a space -saving space that can be installed directly on the body.The series is abundant and fulfilling.
