SMC Dual Rod Cylinder CXSL15-2
#Grup produk P108727128
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp3.599.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -10 to 60 (however, without freezing) |
|---|---|
| Allowable Kinetic Energy (J) | 0.095 |
| Assured Pressure Resistance (MPa) | 1.05 |
| Bearing Type | Ball push type |
| Cushioning | Rubber cushion |
| Function | Auto switch special /- |
| Maximum Operating Pressure (MPa) | 0.7 |
| Minimum Working Pressure (MPa) | 0.1 |
| Operating Piston Speed (mm/s) | 30 - 700 |
| Piping Connection Size | M5×0.8 |
| Suitable fluid | Air (no lubrication) |
| Tube Inner Diameter (Φmm) | 15 |
| Type of Acting | Double acting single rod |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

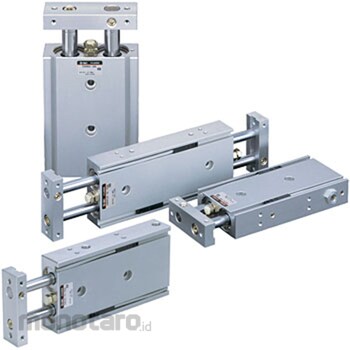

Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
For pick & place with thin, compact and high -precision guide functions.Two rod cylinder suitable for picking and spaces with guide functions.
The external dimensions of all series ball bush shafts, sliding bearings are standardized ball bush shaft, and sliding bearing.
Promotion double unexpected unexpected ± 0.1 °
Stroke adjustment 0-5mm.
Work mounting is possible from 3 sides.
