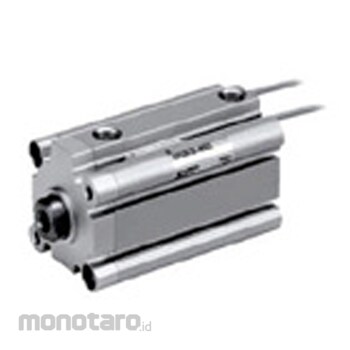

SMC Compact Cylinder CQ2 Series CQ2K-32
#Grup produk P108653522
Kondisi Barang:
Authorized Partner
Spesifikasi
| Operating Pressure Range (MPa) | 0.05 - 1.0 |
|---|---|
| Auto Switch Mounting Groove | 4 sides |
| Lubrication | Not required (no refueling) |
| Mounting Bracket | Through hole |
| Operating Piston Speed (mm/s) | 50 - 500 |
| Port Thread Type | Rc |
| Suitable fluid | Air |
| Tube Inner Diameter (Φmm) | 32 |
| Type of Acting | Double acting single rod |
| Type of Mount/Support | Through hole |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size, material and color for detailsFeature
A space -saving cylinder where the overall length is designed to be thin and the device is compact.Small auto switch can be mounted on 4 sides (φ12 to φ25 2 sides)
There is no auto switch to fly.
Lightweight: 5-13%reduction (conventional CQ2 comparison)
2 Added a new bracket for mountain crabs and compact hoot -shaped brackets
Set of mounting bolts, set of rod tip fittings with tip fittings (you can save time and effort to arrange separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W,
CDQ2K, CDQ2KW, CDQP2, CDQ2 □ S, CDBQ2)
