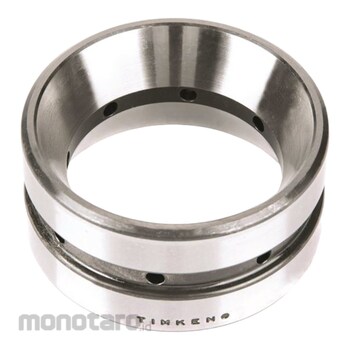

TIMKEN Double Tapered Cup Bearing
#Grup produk P108517576
Spesifikasi
| D-Cup Outer Diameter (mm) | 190.5 |
|---|---|
| C-Double Cup Width (mm) | 80.963 |
| Da-Cup Frontface Backing Diameter (mm) | 182.12 |
| K-Factor² | 1.4 |
| e-ISO Factor³ | 0.42 |
| r-Cup Backface To Clear Radius¹ (mm) | 1.5 |
| Cg-Geometry Factor⁶ | 0.116 |
| G1-Heat Generation Factor (Roller-Raceway) | 269 |
| G2-Heat Generation Factor (Rib-Roller End) | 45.7 |
| Y1 - ISO Factor⁴ | 1.62 |
| Y2 - ISO Factor⁵ | 2.42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Warning
Relate to attribute-1 These maximum fillet radii will be cleared by the bearing corners.
-2 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
-3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
-4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
-5 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
-6 Geometry constant for Lubrication Life Adjustment Factor a3l.
