Hallite Wiper Seal 520

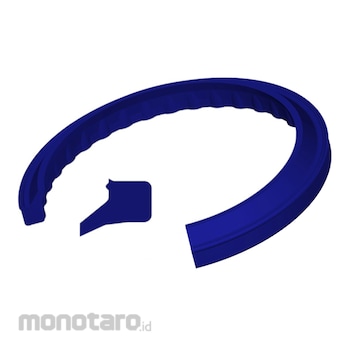

The Hallite 520 single-lipped, snap-in rod wiper is designed to fit North American D-style housings. The proportions of the wiping lip ensure that contact is maintained with the surface of the rod to remove heavily deposited containments such as mud and ice.
The outside diameter of the wiper incorporates a crush lip to provide an interference fit with the housing and a face bead to ensure that the crush lip is not trapped in the corner of the housing. These features help prevent contamination from entering the groove.
The molded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal.
The standard Hallite 520 is molded in polyurethane for maximum wear resistance and performance. For heavy duty and more complex applications, it is also offered in a wide range of Hythane® polyurethane and polyester materials to provide the best ingression protection.
In harsher environments with heavy contamination, the Hallite technical team may advise you to use a Hallite 820 wiper for better debris ingress protection.
