Memory settings
3 work programmes
LCD display
Control through PID
Rapid heating to a predetermined temperature
Cooling system after work
Convenient adjustment of air flow
ESD-safe
Safe soldering details, sensitive to temperature: QFP, PLCC, BGA
Hotair Soldering Iron
Adjustable temperature hot air from 100 °C to 480 °C
Temperature stability +/-1 °C
The source of air supply: the fan in the iron, based on the brushless motor
Air flow up to 130 l/min
Programming: time, temperature, strength of airflow
Tip-based Soldering Iron
Adjustable temperature soldering tip: 200 °C to 480 °C
Temperature stability +/- 1 °C
Soldering iron power: from 72 to 75 W
Voltage ground: up to 2 mV
Ground resistance: 2 Ω
INCLUDES:
Soldering station, heater WEP 853AAA+
Hotair iron
Stand for hotair iron
Tip-based soldering iron + tip T-B
Stand for tip-based iron with sponge for cleaning the soldering tip
Nozzle set:
round with a diameter of 4.4 mm
round with a diameter of 7 mm
round with a diameter of 9 mm
square 12 x 12 mm
A gripper for lifting circuit
Power cable
The user manual

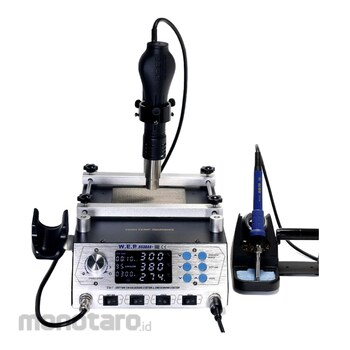

WEP Rework Station Automatic Preheating
#Grup produk P108491320
Spesifikasi
| Supply Voltage (V) | 230 (50 Hz) (network) |
|---|---|
| Capacity (W) | 1270 |
| Temperature Range (°C) | from 50 to 300 |
| Temperature Stability (°C) | ± 2 |
| The Surface of the Heater (mm) | 120x120 |
| Power Consumption (W) | 600 |
| Programming | time, temperature |
