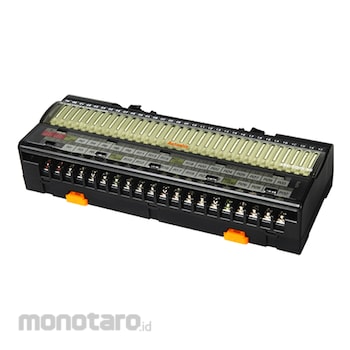

Autonics Relay Terminal Blocks
#Grup produk P108471265
Kondisi Barang:
Authorized Partner
Spesifikasi
| Applicable Relay | NYP24W-K (Takamisawa (Fujitsu)) |
|---|---|
| Cables Used | AWG 22-16 (0.30-1.25mm²) |
| Current Consumption (mA) | ≤8.5/≤13.5 |
| Dielectric Strength Between Coil Contacts (V-Hz) | 2000 AC-50/60 for 1 minute |
| Dielectric Strength Between Same Coil Contact (V-Hz) | 750 AC-50/60 for 1 minute |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Certification | CE |
| Environment Temperature Level (°C) | -15 to 55, enclosed space: -25 to 65 |
| Indicator | Power indicator: Red LED; Operation and disconnection indicator: Blue LED |
| Insulation Resistance (MΩ) | ≥1000 (at 500VDC megger) |
| Load Voltage and Current Range (V/A) | 250 AC/2, 30 DC/2 (2A/1 COM, 8A/1 COM) |
| Material | Case: MPPO, Base: Polyamide 66 (G25%), Terminal Pin: Brass |
| Number of Connector Pins | 40 |
| Number of Relay Points | 32-points (8-points/1 COM) |
| Voltage Range (V) | 24 DC ±10% |
