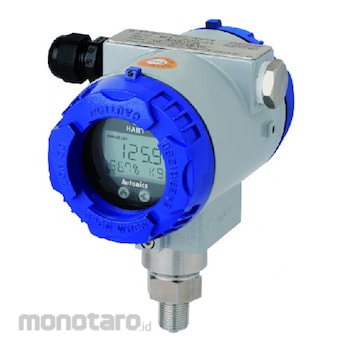

Autonics Transmitter
#Grup produk P108471122
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient Humidity (% RH) | 0 to 85, storage: 0 to 85 (rated at no freezing or condensation) |
|---|---|
| Ambient Temperature (°C) | -20 to 70, storage: -40 to 85 (rated at no freezing or condensation) |
| Applicable Medium | Vapor, Liquid, Fluid (except corrosive environment of SUS316) |
| Display Range | -19999 to 99999 |
| Display Type | PV display part : 7 Segment 5 digit, Parameter display part: 16 Segment 8 digit, Bar LED : 52 |
| Explossion Class | Ex d IIC T6 |
| Install Bracket | Without bracket |
| Material | Body : Aluminium(AlDc.8S), Cover O-Ring : Buna N, Diaphragm : SUS316, Connections : SUS316 |
| Measurement Pressure | Gauge |
| Output (mA) | 4-20 (2-wire); Low-limit 3.8, High-limit 22.8 |
| Power Supply (V) | 9-45DC |
| Pressure Port | G3/8 (PF, standard) |
| Pressure Range (MPa) | 0 to 2 |
| Pressure Type | Gauge, sealed gauge |
| Protection Structure | IP67 |
| Sampling Period (ms) | 200 |
| Setting Method | Setting by front push keys and HART-protocol |
