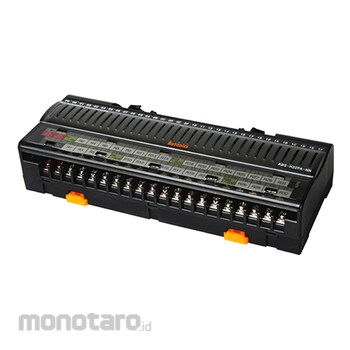

Autonics Terminal
#Grup produk P108471104
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient Humidity (% RH) | 35 to 85, storage: 35 to 85 |
|---|---|
| Ambient Temperature (°C) | -15 to 55, storage: -25 to 65 |
| Applicable Cable | AWG22-16(0.30 to 1.25mm²) |
| Indicator | Power indicator: Red LED, operation and disconnection indicator: Blue LED |
| Dielectric Strength (V/Hz) | AC 1000-50/60 for 1 minute (Between same contacts) |
| Insulation Resistance (MΩ) | ≥1,000 (at 500VDC megger) |
| Material | CASE: MPPO, BASE: Polyamide 66 (G25%), TERMINAL PIN: Brass |
| Number of Connector Pins | 40-pin |
| Number of Relay Points | 32-point(8-point/1 COM) |
| Rated Load Voltage & Current (V-A) | AC 250-2, DC 30 2 (2A/1, 8A/1 COM) |
| Rated Voltage (V) | DC 24 ±10% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Dokumentasi Produk
