Ideal for general-purpose blind hole female threading.
Realized a longer life than notebook products for TiN coating.

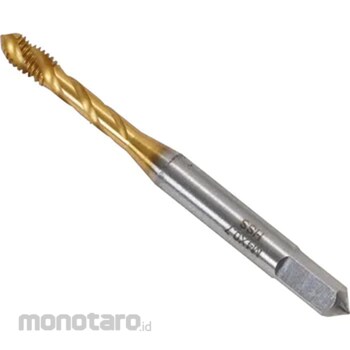

monotaro Spiral Tap TiN Coating
#Grup produk P108470424
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Nominal Size | M4×0.7 |
|---|---|
| Thread Length (mm) | 7 |
| Length under neck (mm) | 20 |
| Shank Diameter (mm) | 5 |
| Material | High Speed Steel _SKH |
| Overall Length (mm) | 52 |
| Center Shape | Sticking Out |
| Compatible Work Material | Low Carbon Steel, Medium Carbon Steel, Alloy Steel |
| Grade | Equivalent to JIS Grade 2 |
| M Code | 54658669 |
| Meal Lcf | 2.5P |
| Number of Grooves | 3 |
| Pitch (mm) | 0.7 |
| Presence/Absence of Protruding Center | Yes |
| Shank Square Length (mm) | 7 |
| Shank Square Width (mm) | 4 |
| Surface Treatment | TiN Coating |
| Torsion Angle (°) | 35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Be sure to wear protective gear when using it as there is a risk of injury.- The grade does not guarantee the accuracy of the internal thread.
- Do not re-polish.
- Up to M6 is protruding center.
Use
For blind hole female threading of low carbon steel, medium carbon steel and alloy steel.Dokumentasi Produk
