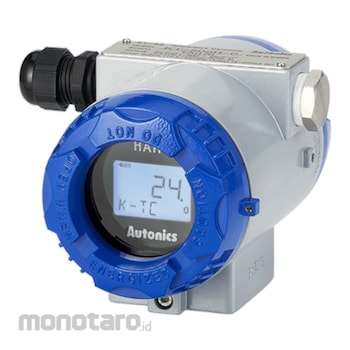

Autonics Temperature Transmitter KT-502H Series
#Grup produk P108470008
Kondisi Barang:
Authorized Partner
Spesifikasi
| Alarm | Below 3.8mA, Over 20.5mA/Sensor break 3.6mA |
|---|---|
| Display Method | PV display part: 7-segment 5-digit (character size: W4xH8mm), Parameter display part: 14-segment 8-digit (character size: W2.6xH4.8mm), 52-bar meter |
| Display Range | -19999 to 99999 |
| Explosion Class | Ex d IIC T6 |
| Galvanic Insulation (kV) | 2 AC (input/output) |
| Humidity Level | 0-85%RH, enclosed space: 0-85%RH |
| Environment Temperature Level (°C) | -20 to 70, enclosed space: 20 to 80 |
| Input Type Voltage Transmission (mV) | -10 to 75, -100 to 500, -100 to 200 |
| Load | Max. (V power supply: 7.5V)/0.22A |
| Material | Body: Aluminium (AlDc.8S), Cover O-Ring: Buna N |
| Output | DC4-20mA (2-wire) |
| Power Supply (V) | 10.5-45.0 DC (with backlight LCD) |
| RTD Input Type | DPt100, DPt500, DPt1000, Ni100, Ni500, Ni1000, Cu50, Cu100 |
| Response Time (s) | 1 |
| Setting Type | HART-protocol (no setting key) |
| TC Input Type | K, J, T, E, N, S, B, R |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The KT-502H series temperature transmitters with HART protocol supports 22 types of input. The display can be rotated 330° and the backlit display offers high visibility even in dark environments.
