The S16SR series selector switches are ideal for installation in compact-sized equipment and panels. The 16 mm installation hole size, 29.5 mm protruding rear-length, and independent detachable contacts allow flexible installation in limited spaces.
The S16SR series is available in round, square, and rectangular head types with red, blue, green, yellow, and white color options. 2-position (spring return/maintained) or 3-position (two-way spring return/right spring return/left spring return/maintained) control is possible depending on the model type.

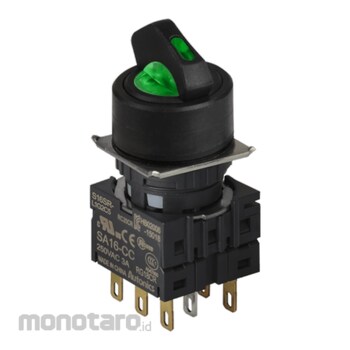

Autonics Ø16 switches/pilot lights S16SR Series
#Grup produk P108469109
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Green |
|---|---|
| Contact Block | C Contact: 2 |
| Contact Block Electrical Specifications Current/Voltage Power (V/A) | 250 AC/3 |
| Contact Block Mechanical Specification Terminal Tensile Force (N) | Max. 30 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| LED Block Power Supply (V) | 24 DC |
| Certification | CE |
| Environment Temperature Level (°C) | -15 to 55, enclosed space: -25 to 65 |
| Luminous | Luminous |
| Mechanical Characteristics of Operating Angle (degree) | Left 45, Right 45 |
| Standard Protection | IP65 (IEC standard) |
| Terminal Soldering Time (s) | At the end of tips Within 3 With 350°C (30W: soldering machine) |
