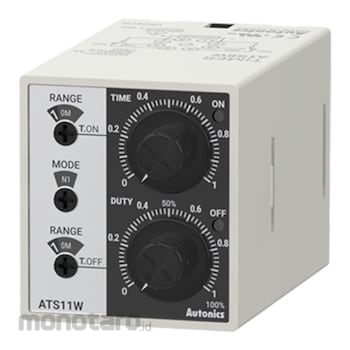

Autonics Analog Timers ATS11W Series
#Grup produk P108468562
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | Bracket |
|---|---|
| Ambient Humidity (% RH) | 35 to 85 |
| Ambient Temperature (°C) | -10 to 55, storage: -25 to 65 |
| Operation Method | Time setting |
| Output Operation | FLICKER |
| Power Supply (V-Hz) | AC 100-240, DC 24-240, 50/60 |
| Control Output | Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
| Setting Range (s) | 0.1 to 1 (, 1 to 10 (, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour |
| Terminal | 11-pin plug |
| Time Operation | Power On Start |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The ATS8W/11W series analog twin timers feature 6 output operation modes and 12 time setting ranges for application in diverse timing control tasks. The timers feature independent dials for separate ON/OFF timing control. Simple time configuration and operation is possible with dual analog dials. The ATS8W models support 8-pin connection and the ATS11W models support 11-pin connection.
