- When the current exceeds the set current, the switch automatically turns OFF
- Even if the circuit becomes overloaded while the ON button is pressed, the circuit is safely cut off.
- Self-lifting terminal screw

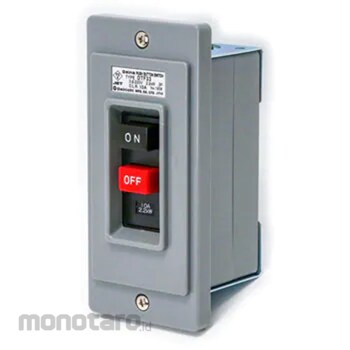

Dainichi Works Power Push Button Switch
#Grup produk P108465149
Spesifikasi
| Number of Buttons | 2 |
|---|---|
| Insulation Resistance (MΩ) | 10 or More |
| Switching life (times) | Electrical Switching/100.000 |
| Vibration Resistance Frequency (Hz) | 16:07:00 |
| Rated Frequency (Hz) | 50/60 |
| Case Material | Plastic |
| Color | Munsell N5.5 |
| Degree of Protection (Panel Surface) | IP40 |
| Double Amplitude (mm) | 3 |
| Kinds | Embedded Type/With Overload Protection |
| M Code | 46778146 |
| Number Of Poles (P) | 3 |
| Place Of Use | Atmosphere Free From Excessive Water Vapor, Oil Vapor, Smoke, Dust, Salt, Solvents, Acids, Alkalis, Corrosive Substances, etc. |
| Rated Capacity (kW) | 2.2 |
| Rated operating current (A) | 10 |
| Rated operating voltage (V) | 220 (AC) |
| Shock Resistance | Impact acceleration 10G |
| Wire Connection Method | Surface Connection Method By Crimp Terminal or Direct Wire Connection |
| Withstand Voltage (V/minute) | 1500 (AC220)/2000 (AC440) |
