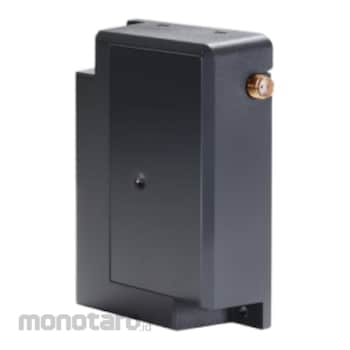

Weintek WiFi Expansion Module
#Grup produk P108438844
Spesifikasi
| Input Power (VDC) | 5 |
|---|---|
| Power Consumption (mA) | 900 @5VDC (powered by HMI) |
| Enclosure | Plastic |
| Dimensions (mm) | 54.5x80x24.1 |
| Protection Structure | M02: IP20 Compliant; Antenna: IP66 Compliant |
| Certificate | CE marked; cULus Listed |
| I/O Port | SMA Female Connector x1; Male Connector to HMI x1 |
| Isolation Resistance (MΩ) | Exceed 50 at 500VDC |
| Mount | HMI connector + diagonal screw fastening |
| Operating Temperature (°C) | 0 to 55 |
| Relative Humidity (%RH) | 10 to 90 (non-condensing) |
| Software | EasyBuilder Pro |
| Storage Temperature (°C) | -20 to 60 |
| Vibration Endurance Frequency (Hz) | 10 to 25 (X, Y, Z direction 2G 30 minutes) |
| Voltage Resistance (VAC) | 500 (1min.) |
| Wi-Fi | IEEE 802.11 b/g/n (802.11b: max 19.76 dBm, 802.11g: max 19.93 dBm, 802.11n: max 19.99 dBm) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Modular design, adds wireless connectivity to HMI.- WiFi standards supported include: IEEE 802.11b/g/n.
- Compact design and little protrusion when installed on HMI, which avoid space issue in control cabinet installation.
- The magnetic mount antenna included in the package can be installed at an optimal location to maximize signal strength.
