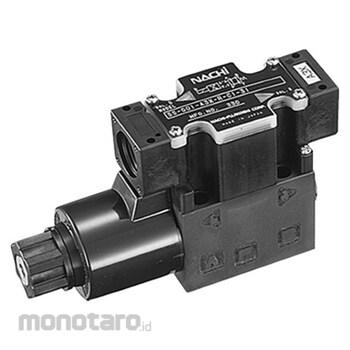

NACHI Katup Solenoid Wet Type (Central Terminal Box) Standar Seri SS-G03-A3X
#Grup produk P108430180
Sebelum PPN:
Rp5.599.900 - Rp8.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Type | Standard type |
|---|---|
| Valve Type | Solenoid Control Valve |
| Connection Method | Gasket mount type |
| Flow Rate (L/minute) | 130 |
| Maximum Operating Pressure (MPa) | 35 |
| Operation Symbol | A3X |
| Pipe Connection Size (inch) | 3/8 |
| Specification | with Indicator Light |
| Wiring Method | Centralized terminal box type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Fitur
- Very long life : The movable iron core of the wet type solenoid is immersed in oil, which keeps it lubricated and cushions it from impact and vibration, ensuring very long life.- Low switching noise : The wet-type solenoid valve provides very low core switching noise, for quiet operation.
- High pressure, large capacity, with minimal pressure loss Comprehensive fluid reaction force compensation and low pressure compensation construction provide large capacity and low pressure loss. G03 : 35MPa (357kgf/cm2) 160L/min
- Easy connections : A special wiring box provides a COM port and indicator light as standard for simple wiring and maintenance.
- Easy coil replacement : A plug-in type coil enables one-touch coil replacement.
- Wide-ranging backward compatibility makes it simple to replace previous valve models with this one. Combining this valve with a modular valve contributes to the compact configuration of the overall device.
