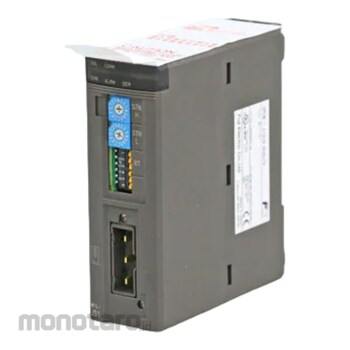

Fuji Electric Communication Module
#Grup produk P108430046
Spesifikasi
| Applicable Model | TYPE-M51I |
|---|---|
| Cable | Shielded Twisted Pair Cable |
| Communication Function | Initial setting service/input/output service/reset service/broadcast service |
| Input/Output Points | Maximum 2048 points (128 words)/1 slave |
| Transmission line | Form: Bus Configuration (multidrop) |
| Setting Range | Area Code: 01-7F |
| Current Consumption (mA) | Internal (24 VDC): 130 or Less |
| M Code | 34997487 |
| Mass Module Body Approx. (g) | 230 |
| Mass OPCN-1 Connector Approx. (g) | 40 |
| Maximum number of connections | SX bus Max. 8 units/Configuration/31 Slave Stations/1 Master Module |
| Transmission Method | Half-Duplex Serial Transmission, EIA RS-485 Compliant |
| Transmission Speed (kbps) | 125 (1000m), 250 (800m), 500 (480m), 1000 (240m) Is The Total Extension Distance |
