Phoenix Contact Power Supply Accessories
#Grup produk P108418965
Spesifikasi
| Product Range | QUINT DIODE Series |
|---|---|
| For use with | Phoenix Contact QUINT Series Uninterruptible Power Supplies |
| Accessory Type | Diode Module |
| Dimensions (WxHxD) (mm) | 50x130x125 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

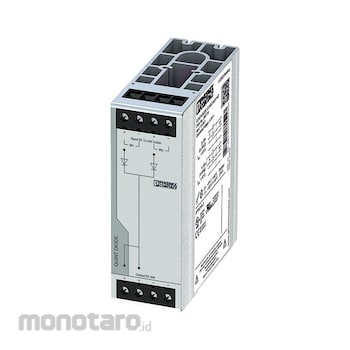

QUINT4-DIODE/12- 24DC/2X20/1X40 is a redundancy module for uniform redundancy up to the consumer. A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, QUINT DIODE provides the solution decoupling with diode. Approved by UL/C-UL listed UL 508, UL/C-UL, UL 60950-1, UL ANSI/ISA-12.12.01 class I, division 2, groups A, B, C, D (hazardous location).
Feature
Input voltage is 12VDC to 24VDC, output voltage range from 12VDC to 24VDCNominal output current is 40A (increasing power), 20A (redundancy), efficiency is > 97%
Flexible, rugged design, consistent redundancy up to the load
Screw input and output connection
Degree of protection is IP20
Aluminium / stainless steel housing material
Operating ambient temperature -40°C to 70°C (> 60 °C derating: 2.5%/K
