The new Fluke 1625-2 GEO Earth Ground Tester offers data storage and download capabilities via USB port, simplifying and speeding up testing time. It is able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod.
Content :

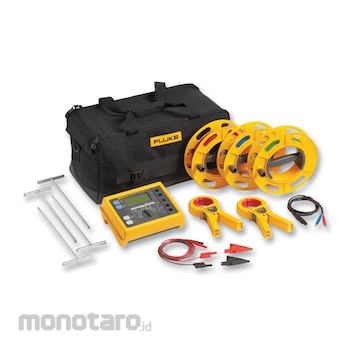

GEO 1625-2 Earth Ground Tester, User's Manual, Batteries, Quick Reference Guide, USB Cable, 2 Clamps, C1620 Professional Carrying Case, 4 Earth Ground Stakes, 3 Cable Reels
FLUKE Earth & Ground Resistance Testers
#Grup produk P108415843
Spesifikasi
| Measuring Functions | 3 and 4 Pole |
|---|---|
| Resistance Measurement Range (ohm-kΩ) | 0.02 to 19.99 |
| Resistance Measurement Frequency (Hz) | 128 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
3 & 4 pole fall of potential, earth resistance loop testing4 pole soil resistivity testing
Selective earth ground rod testing using 1 clamp
Stakeless earth ground rod testing using 2 clamps
Automatic Frequency Control (AFC) - chooses a measurement frequency to minimize interference
R measurement - calculates ground impedance at 55Hz to accurately reflect earth ground resistance
Adjustable limits for quicker testing
IP56 rated for outdoor use
USB data storage and transfer
LCD display
Operating temperature range -10°C to 50°C
Voltage measuring range (AC): 0V to 48V
