Resist pressures up to 500 psi!
Use for continuous control of liquid or gas flow
Valves withstand pressures to 500 psi
Apply a 0 to 30 VDC input signal-these normally-closed valves open to give you flow rates that are proportional to the input voltage. Stainless steel valve construction withstands pressures to 500 psi. Maximum fluid temperature is 122 °F (50 °C). Maximum ambient temperature with intermittent use is 130 °F (54 °C). Actuation time is 500 milliseconds.
Wetted parts are 316 and 416 stainless steel and VITON. Ports are 1/4" compression fittings. Valves include 6" lead wires.
Optional Control Module allows valves to accept 0 to 5 VDC or 4 to 20 mA input signal-ideal for use with transmitters or controllers. Control module has a DB9 female connector (cord sold separately) for input/output signals and requires a 12 to 30 VDC power supply.
Based on 10 psi inlet pressure and atmospheric exhaust.

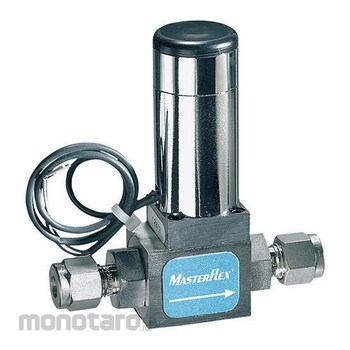

Master Flex Valve Solenoid
#Grup produk P108382484
Spesifikasi
| Inlet Port (inch) | 1/4 compression |
|---|---|
| Outlet Port (inch) | 1/4 compression |
| Connection Type | Compression |
| Depth (mm) | 25.4 |
| Height (inch) | 3.5 |
| Tubing OD (inch) | 0.25 |
| Width (inch) | 3.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Use for continuous control of liquid or gas flowValves withstand pressures to 500 psi
