Simple variable speed control handles many fluid handling applications.
100:1 speed-control range controls flow over a wide range
Maximum continuous-duty flow rates possible with Micropump A-mount pump heads
Simple operation with single-turn speed control
Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
Remote control of start/stop via DB9 connector on back of drive
Maximum flow rate of 5,850 mL/min depending on pump head selected
Powered by 115 VAC
Compact, cost-effective drive offers simple variable speed control for many fluid handling applications from general transfer to filtration to chemical injection. Couple with an A-mount gear pump head for pulseless fluid flow.

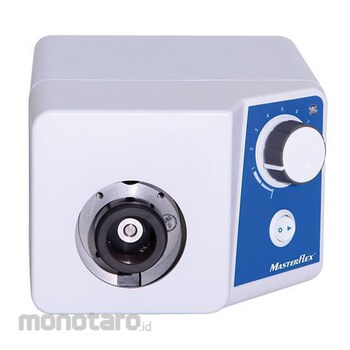

Master Flex Gear Pump Drives
#Grup produk P108380389
Sebelum PPN:
Rp109.999.900 - Rp119.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Flow Rate (ml/minute) | 5850 |
|---|---|
| Width (cm) | 18.3 |
| Height (cm) | 13.4 |
| Enclosure IP Rating | IP 22 |
| Remote Control Input | Start/stop |
| Duty Cycle Continuous | Yes |
| Length (cm) | 23 |
| Maximum Motor Speed (rpm) | 5000 |
| Minimum Flow Rate (ml/minute) | 0.85 |
| Minimum Motor Speed (rpm) | 50 |
| Motor (HP) | 1/20 |
| Motor Enclosure Type | Painted steel and ABS plastic |
| Plug Type | US |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
100:1 speed-control range controls flow over a wide rangeMaximum continuous-duty flow rates possible with Micropump A-mount pump heads
Simple operation with single-turn speed control
Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
Remote control of start/stop via DB9 connector on back of drive
Maximum flow rate of 5,850 mL/min depending on pump head selected
Powered by 115 VAC
