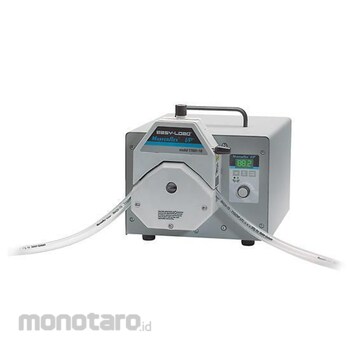

Master Flex Brushless Process Drive

Powerful, low-maintenance drives are versatile and cost-effective.

Flow rate 0.2 to 26 LPM with I/P tubing-flow rate depends on drive rpm, pump head, and tubing size
Digital interface with LED display shows percent speed with 1% resolution
Speed control via three-turn potentiometer for quick, easy adjustments
Easily control start/stop and reverse features via sealed keypad
Contructed of non-chip painted steel and aluminum IP55-rated housing
Brushless, maintenance-free motor offers ±0.25% speed control accuracy
Remote control available using analog communication-voltage, current and contact closure

Flow rate 0.4 to 8 LPM with I/P tubing-flow rate depends on drive rpm, pump head, and tubing size
I/P brushless process drives offer heavy-duty performance for your demanding process applications. This model features robust 1/3-hp brushless motors that drive up to two pump heads with most tubing formulations, while eliminating the cost and inconvenience of brush replacement. Adjust the drive speed quickly using the speed control knob-speed is displayed on an easy-to-read LED display from 5 to 100% of full speed, with 1% resolution.
Remote control inputs include 4 to 20 mA, 0 to 10 V, start/stop, and reverse; remote control outputs a "pump ready" signal and 4 to 20 mA outputs (requires 77300-32 remote cable kit, sold separately).
The IP55-rated epoxy-coated, steel enclosure provides excellent protection against chemicals, water, and dust. With a compact footprint and built-in carrying handle, these lightweight drives conserve space and allow easy portability.
