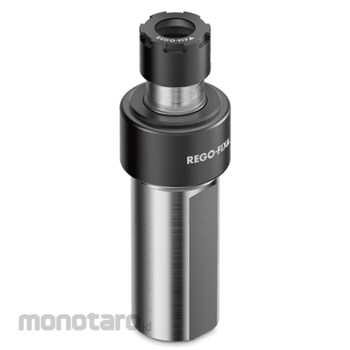

Rego-Fix MPH Mini Floating Chucks
#Grup produk P108300453
Sebelum PPN:
Rp16.999.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Norm Size | 11 |
|---|---|
| Cooling | No |
| L (inch) | 1.3976 |
| L (mm) | 35.50 |
| D (mm) | 16 |
| For Tapping | No |
| Form | Standard |
| Length Style | Standard |
| Matching Wrench | 7118.11000 |
| Mini Thread | Yes |
| Nut | ERMX |
| Slip-Off Proof | Yes |
| d (inch) | 0.63 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
MPH mini floating chucks Compensate axis errors between the chuck and bore by using a self-centering floating chuck.
Peringatan
-Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya-Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website.
Feature
Adjustable floating resistanceContinuously adjustable between auto-centering and free-floating. No restriction of the floating movement.
Adjustment for tool weight
Optimal setup by adjustment of floating resistance is possible.
Vertical and horizontal application
Adjustable self-centering keeps the tool at the center of the floating chuck, even in the horizontal position. Prevents chatter marks and extends tool life.
Combined ball- and friction-bearing
Combined ball and friction-bearing for easy floating: Ball bearing for smooth reaming at low load applications and friction-bearing to withstand high pressures at high load applications
Double sealing against dirt
Prevents coolant and chips from entering the floating chuck.
Excellent bore quality
Only parallel floatation of tool possible.
