Rego-Fix CYL/MRM Cylindrical Shank Toolholders
#Grup produk P108296673
Sebelum PPN:
Rp5.999.900 - Rp6.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Norm Size | 16 |
|---|---|
| Cooling | Yes |
| D (mm) | 24 |
| For Tapping | No |
| Form | Standard |
| Interface Size | 20 |
| L1 (inch) | 0.9921 |
| L1 (mm) | 25.20 |
| L2 (inch) | 0.98 |
| L2 (mm) | 25 |
| Length Style | Standard |
| Matching Wrench | 7855.16800 |
| Mini Thread | Yes |
| Nut | MRM |
| Slip-Off Proof | No |
| d (inch) | 0.94 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

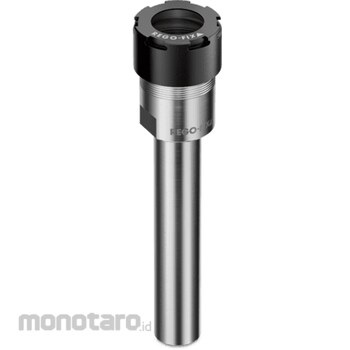

CYL Cylindrical shank toolholders Our cylindrical ER colletholders are designed for automatic turning machines and can also be utilized as extensions.
Peringatan
-Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya-Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website.
Feature
Runout TIR ≤3 μmCYL / ERM and CYL / ERMX
Measured from inner taper to outer shank.
Runout TIR ≤5 μm
CYLF / ERM and CYLF / ERMX
CYDF / ERM and CYDF / ERMX
Measured from inner taper to outer shank.
Surface finish max. Ra 0.25
Achieve high clamping force and high transferable torque.
Sizes
ER 8 – ER 40. h6 tolerance on shanks.
Types
Cylindrical, flat- or double-ended colletholders.
Extra worker protection
Some cylindrical colletholders are equiped with our slip-off proof mini nut intRlox. Check for "ERMX" designation in the type name!
