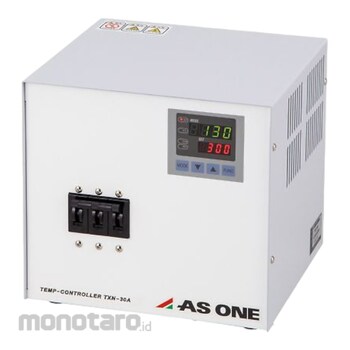

AS ONE Three-Phase Temperature Controller
#Grup produk P108269110
Spesifikasi
| Power Cord Length (m) | None (Connect to the power supply terminal of the rear terminal block) |
|---|---|
| Temperature Settings Range (°C) | Pt 100 Ω/0.0 to 200.0 , K class thermocouple/0 to 500 |
| Alarm Output (V/A) | AC100/200/2.4 |
| Main Unit Size (mm) | 230x215x211 |
| Input Voltage AC (V) | 100/200/Three-phase 200 |
| Safety device | circuit breaker (40 A) |
| Compatible Sensor | K class thermocouple, Pt 100 Ω |
| Connection Terminal Block | Sensor/M3, power supply Output/Alarm/M5 |
| Environment Used (°C/%RH) | Temperature/0 to 35 , Humidity/35 to 85 (noncondensing) |
| Output Capacity AC (50/60 Hz) (V) | 100 to 200/three-phase 200 |
| Package Size (mm) | 310x265x225 |
| Temperature Control Method | PID Control, SSR Output |
| Temperature Display Accuracy | ± 2° C or ± 0.3% + 1 digit, whichever is larger (Time in K class thermocouple) |
| Timers | Type/Auto start/Auto stop/SV start, Configurable time/1 minute, to 99 hours 59 minutes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
A large-capacity temperature controller of up to 30 A can also be used for a three-phase 200 V power supply.As it can be used with 3 types of power supplies, it can be used widely with 1 unit.
Both K thermocouple and Pt 100 Ω can be selected and used (factory setting is K thermocouple).
3 patterns of timer can be set.
Temperature Controller for High-Capacity 3-Phase Power Supply
