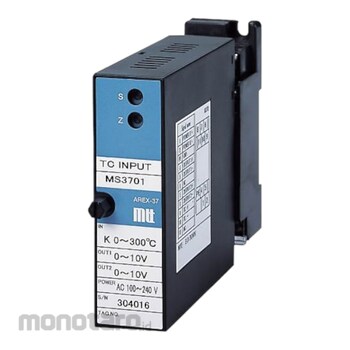

MTT Thin Plug Insulation 1 Output Thermocouple Temperature Converter
#Grup produk P108268795
Spesifikasi
| Measurement Temperature Range (°C) | 0 to 500 |
|---|---|
| Mounting Method | Wall mounting, DIN rail mounting common |
| External Dimensions (mm) | 29x86x12 |
| Operating Environment | Temperature/-5 to 55° C, Humidity/5 to 90 %RH (No condensation) |
| Allowable Voltage Range (VAC-V) | 85 to 264 |
| Input Signal | K class thermocouple |
| Maximum Current Output Load DC (mA) | 4 to 20 |
| Output Signal (mA) | 4 to 20 |
| Package Size (mm) | 105x140x45 |
| Span Adjustment Range | Approx. ± 5% of Span |
| Supply Power Supply AC (50/60Hz) (V) | 100 to 240 |
| Wiring Methods | M3.5 Screw Terminal Connections |
| Zero Point Adjustment Range | Approximately ± 5% of Span |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
Inputs the mV signal from the thermocouple, compensates for cold contact and linearization, and converts it into an insulated unified instrumentation signal.Cold contact compensation, linearizer (up to 6 lines), and built-in burnout function.
0.
2 μm gold plating treatment is applied to the contact parts of the body and socket to achieve high reliability and durability.
