AS ONE Swing Device Mini
#Grup produk P108263134
Spesifikasi
| Size (mm) | 105x155x120 |
|---|---|
| Stroke (mm) | 15 to 40 |
| Speed (rpm) | 0 to 60 |
| Cord Length (m) | 3.3 |
| Applicable Shaft Diameter Stand/Arm (mm) | 8 to 13 |
| Accessories | Stand (Total length 600 mm), Arm (Double Clamp Total length 225 mm) Depending on the shape and mounting method, Operation at maximum speed may not be possible. |
| Material | Body Steel (baked paint) |
| Package Size (mm) | 220x160x195 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature

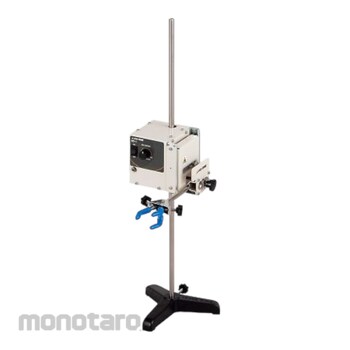

Compact and compact rocking device designed with the concept of free mounting and combination.The body can be attached to the stand and can be fixed at any height, so the size of the washing tank can be chosen.
By using a clamp on the arm part, it is possible not only to hang the cleaning object but also to firmly fix it.
The attached stand and arm part can be replaced with general-purpose ones.
*Stability and balance between front and rear need to be adjusted.
The vertical swing width can be easily adjusted within the range of 15 ~ 40 mm, and the swing speed can also be adjusted.
Mounting height, swing width and speed are free!
