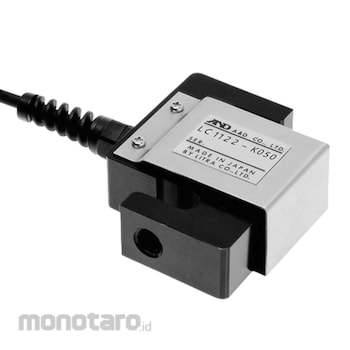

AND Small S-Shaped General Purpose Load Cell
#Grup produk P108247455
Spesifikasi
| Insulation Resistance (MΩ/V) | 5000/DC 50 |
|---|---|
| Allowable Overload | 150% of R.C., marginal overload |
| Maximum Applied Voltage DC (V) | 15 |
| Overall Error | 0.04% of R.O. |
| Rating Output (mV/V) | 1.0197 mV/V + 20% - 0% |
| Resistance Between Input Terminals (ohm) | 400 |
| Resistance Between Output Terminals (ohm) | 350 ±3.5 |
| Temperature Compensation Range (°C) | 10 to 50 |
| Zero Balance | ±5% of R.O. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
Load cell for hopper and tank The aluminum material is processed with black alumite to improve corrosion resistance.Ideal for dynamic metering with a structure that is not easily affected by eccentric loads.
For both tension and compression.
Temperature effect at 0: 0.
1% ofR.
O.
/10 °C Temperature influence of output: 0.
03% ofLoad/10 °C Cable Thickness/Length: φ 6/3 m Dustproof/Waterproof: IP 22
