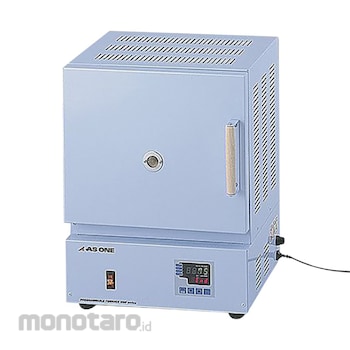

AS ONE Small Program Electric Furnace
#Grup produk P108247251
Spesifikasi
| Power Cord Length (m) | 2 (3P plug) |
|---|---|
| Power Supply (50/60Hz) (VAC) | 100 |
| Time Setting Unit (minute) | 1 |
| External Dimensions (mm) | 320x286x428 |
| Inner Furnace Dimension (mm) | 170x170x150 Including sensor protrusions |
| Accessories | Ceramic board, tweezers (240mm) |
| Control System | PID control |
| Exterior | Steel coating finish |
| Heater Power (W) | 1000 (4 Side Heater) |
| Interior | Ceramic fiber |
| Package Size (mm) | 420x470x480 |
| Program Function | 16 steps, 4 patterns |
| Sensor | K class thermocouple |
| Temperature Settings Range (°C) | 100 to 900 |
| Temperature Settings Unit (°C) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
Even 4-patterns can set up program of 16-steps.Possible to use it to heat treatment, caloric test, etc.
, because it has PID control which high temperature control accuracy.
At the time of abnormalities in temperature, burnout function which builds in safety circuit which intercepts heater and detects abnormalities in sensor is also equipped.
Although it is lightweight and compact, inside of furnace is designed widely.
Setup of temperature gradient is possible.
Time for temperature rise is shortened by adoption of 4-sides-heater.
W-series can observe state of sample with window for observation in furnace.
