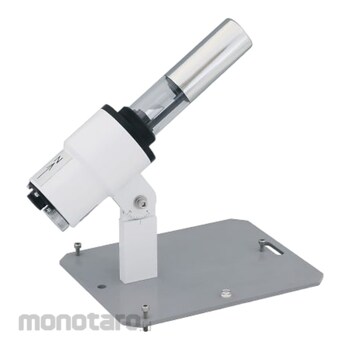

EKO Instruments Simplified Solar Radiation Meter
#Grup produk P108244616
Spesifikasi
| Size (mm) | 200x250x350 |
|---|---|
| Sensitivity (μV/W/m²) | 1.785 |
| Wavelength Range (nm) | 300 to 2700 |
| Accessories | ground wire (1 m) |
| Analog Voltage Output (V) | 0 to 2.5 |
| Direct Solar Radiation Detection Error | ± 5% |
| Cable Length (m) | 10 |
| Latitude | -58 to + 58° |
| Mirror Speed (rpm) | 240 |
| Operating Temperature Range (°C) | -20 to + 45 |
| Package Size (mm) | 390x260x410 |
| Power Supply (VDC-V) | 10.5 to 12.5 |
| Sun Threshold | Direct solar radiation intensity 120 W/m2 |
| Sunlight Output | Voltage free contact output Pulse width/1 sec ± 0.005 sec (Voltage 60 V), with sun/contact closed for 1 sec every 15 sec (1 pulse/15 seconds, 240 pulses/hour), without sun/contact open |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature
Direct solar radiation captured by a rotating reflector is guided to a pyroelectric element with flat spectral sensitivity, and direct solar radiation can be measured simply by pulse signals.Since direct insolation can be measured, it is possible to calculate horizontal plane scattering insolation by combining with a global insolation meter.
