EYE GRAPHICS Plating Solution
#Grup produk P108235195
Spesifikasi
| Power Supply | 1AC200V±6% 50/60Hz 10A |
|---|---|
| Size (mm) | Approximately 720x390x735 |
| Main Unit Size (mm) | 720x390x735 |
| Cord Length (m) | 3 |
| Conform Lamp | H015-L312 or M015-L312 |
| Conveyor Belt | Stainless steel Mesh (Width |
| Conveyor Speed (m/minute) | 50Hz/0.8 - 8.0, 60Hz/0.97 - 9.7 |
| Effective Irradiation Width (mm) | 85 |
| Irradiation Distance (mm) | 100 - 155 (with IRCF/120 - 155) |
| Irradiation Instrument Mounting Direction | Perpendicular or parallel to the flow |
| Irradiation Instrument Reflection Board | Cold mirror light condensing type (100mm) |
| Lamp Output | 1.0kW/1.5kW (2 steps switching) |
| Light Emission Length (mm) | 122 |
| Max. Work Dimensions Width x Height (mm) | 130x 60 |
| Pass Line (mm) | 255 |
| Power Consumption (W) | 1650 |
| Work Recommended Weight | Total sum of 1.0kg or less (in the case of forward rotation) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature

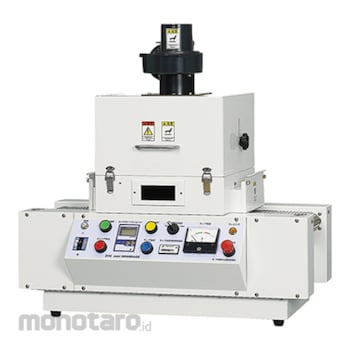

This is small and compact benchtop conveyor system for UV curing.Possible to switch between 2-levels of lamp output, 1 kW or 1.
5 kW.
