TAMAOKA Circuit Breaker
#Grup produk P108233799
Spesifikasi
| Size (mm) | 89x116x39 |
|---|---|
| Adaptive Phase Wire System | Single-phase 2-wire system |
| Applicable Main Breaker | Ground fault circuit breaker High speed type 30 mA sensitivity |
| Rated Voltage (50/60Hz) (V) | 100 |
| Site | receptacle with installation terminal |
| Accessories | Double-sided Tapex1, Mounting screwx2, levelx1 |
| Package Size (mm) | 100x240x180 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for details.Feature

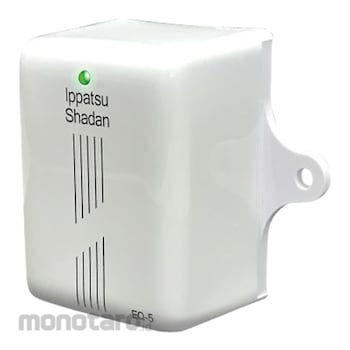

It can be installed in a grounded outlet, and when it senses an earthquake of seismic intensity 5 upper or higher, it sends a pseudo leakage current to the ground wire to activate the earth leakage breaker installed in the distribution board.No electrical work is required for installation, and the body can be easily installed with the attached adhesive tape (both sides) and mounting screws.
Normal operation (standby state) can be checked by lighting the LED (green).
