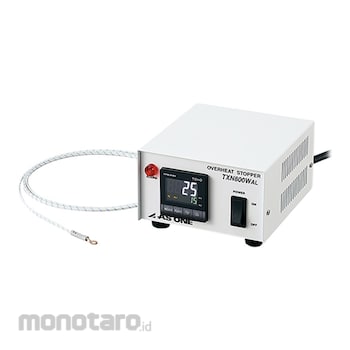

AS ONE Over Temperature Control Device
#Grup produk P108194481
Spesifikasi
| Connection Capacity AC100V (A) | 15 |
|---|---|
| Power Cord Length (m) | 1.8 (with 3P plug) |
| Power Supply (50/60Hz) (VAC) | 100 |
| Size (mm) | 130x160x84 |
| Sensor Type | K class thermocouple |
| Connection Terminal | Control output/3P outlet, Alarm Output, sensor input /M3.5Y terminal block |
| Accessories | K class thermocouple round terminal specification (capable for 180°C), Cable length |
| Output Control System | Relay contact output |
| Output For Alert (V/A) | 100/1 |
| Package Size (mm) | 240x210x120 |
| Setting System | UP/DOWN key |
| Temperature Control System | Main control ON/OFF |
| Temperature Display Precision (°C) | ±2 or instruction value ± (0.3% + 1 digit), whichever is larger |
| Temperature Setting (°C) | -100 to +1000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
Alert output is 100V/1A specification, various combinations such as warning lamp and buzzer are possible.
Separately, if use sensor with high heat resistance, possible to control up to 1000 °C.
When AC100 V is input, the alarm is announced with rotary type flash.
Buzzer included warning with buzzer according to light emission.
By using optional mounting set, it becomes possible to fix to wall or metal part.
